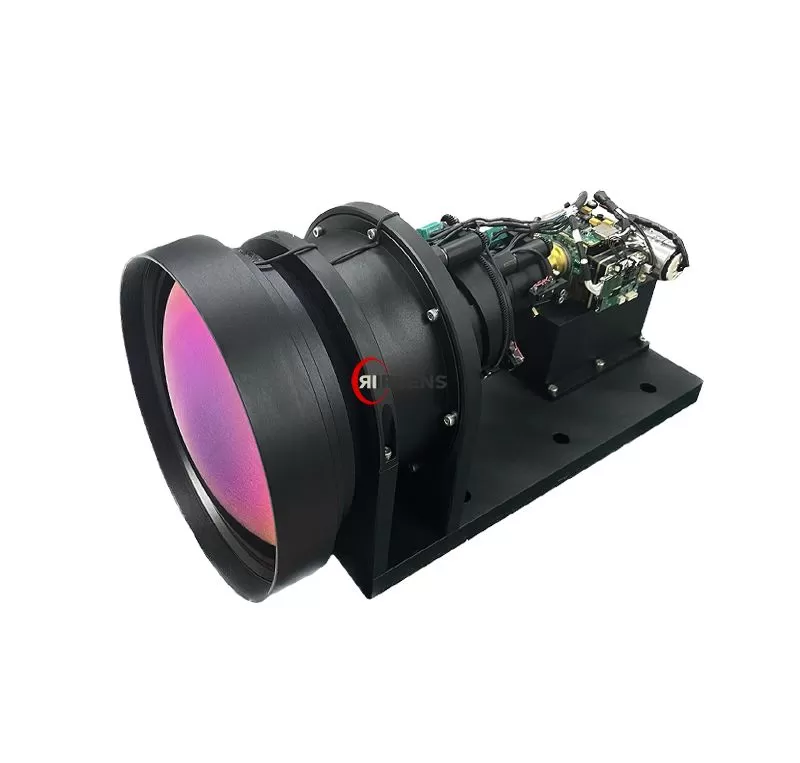

MWIR detector and 640x512 resolution for crispy image. In addition, Continuous Zoom IR Lens 110~1100mm can distinguish the human, vehicle and ships at long range.
Details Parameters
Advanced technologies for the highest performance mid-wave focal planes:
1. High-durability and hard-carbon 3.7-4.8 µm MWIR wavelength AR exposed mirror coating
2. Passive athermalization with the highest imaging performance from -40 to +60°C
3. Optimized for 640x512 cooled MWIR cameras with 15 μm pixel pitch
4. Motorized focus and zoom mechanism with crisp image over the full range
| Specifications | ||
| OPTICAL | ||
| Focal Length / F# | 110~1100mm F/5.5 | Compatible with detectors having 110mm ≥ EFL≤1100mm |
| Detector (FPA) type | 640×512-15μm | |
| Working Spectral Band(SR) | 3.7um-4.8um | |
| FOV | 5°×4°～0.5°×0.4° | |
| Exposed Mirror Coating | High efficiency AR coating | DLC and HD are available upon request |
| Imaging Range | 5m to infinity | |
| MECHANICAL | ||
| Zoom Mechanism | Motorized | |
| Total Weight | ≤6.0kg | lens and control pannel |
| Dimensions | Ø218mm×326.55mm | Length is available upon request |
| Mount | Customized to Specification | |
| ENVIRONMENTAL | ||
| Operating Temperature | -40ºC to +60ºC | |
| Storage Temperature | -40ºC to +60ºC | Keep two houres when test |
| Shock and Vibrations | Per applicable standard | |
| Front Lens Sealing | IP67 | |
In the field of telephoto infrared lenses, we have become a reliable choice for buyers with our outstanding strength. Here are our core advantages:
Ultra-telephoto high-resolution imaging: The lens has a super-telephoto range of 110 - 1100mm and an F5.5 aperture, ensuring that it can still provide clear, high-contrast images when detecting at long distances, meeting your needs for fine target monitoring, and performing well even in low-light conditions.
Stable and reliable telephoto performance: The use of advanced optical design and high-precision manufacturing technology effectively reduces aberrations, ensuring stable and clear imaging within the full focal length, providing strong support for long-distance target identification and monitoring.
Sturdy and durable structural design: Made of high-quality materials, with a sturdy mechanical structure, it can maintain stable working conditions under harsh environmental conditions, has good impact resistance and durability, and ensures reliability in various complex application scenarios.
Fast and accurate customization service: We have a professional R&D team that can quickly respond to customers' personalized needs and provide one-stop customization services from design to manufacturing to ensure that the products meet your specific application scenarios and performance requirements, whether it is processing according to drawings or customized R&D.
Strict quality control system: As the source factory, we strictly control the production process, from raw material procurement to finished product delivery, through multiple strict quality inspection processes, to ensure that the quality of each lens is stable and reliable, reducing customers' worries during use.
Continuous electric zoom: Supports continuous electric zoom operation, the focal length can be smoothly adjusted from 35mm to 690mm, with the electric focus function, it can quickly adjust the focal length and focus, and achieve a smooth transition from wide angle to telephoto, which is convenient for users to switch flexibly in different scenes and easily capture the details of distant targets.
Fast and accurate focus: The electric focus system responds quickly and accurately, and can achieve accurate focus in a short time. The focus time is ≤1s, ensuring that no key moment is missed, especially suitable for dynamic monitoring and rapidly changing scenes.
Stable optical axis performance: The stability of the zoom optical axis is ≤3 pixels, the installation base is perpendicular to the optical axis, and the parallelism of the large and small field optical axes is ≤3 pixels, which ensures the stability and consistency of the image and avoids image deviation and measurement error caused by optical axis offset.
Long-distance monitoring capability: With a wide focal length range of 35 to 690mm, the lens can monitor and identify long-distance targets. For example, in security monitoring, it can clearly observe and track distant buildings, vehicles and personnel.
Q: Will the ultra-long focal length of this lens affect the imaging speed and smoothness?
A: No. The lens has an advanced built-in drive and control system, which optimizes the mechanical transmission structure of zoom and focus, and can ensure imaging speed and smoothness in the ultra-long focal length segment. The screen switches naturally without stuttering or delay, ensuring that users can observe the target dynamics in real time and clearly without missing any key information.
Q: Will the lens be affected by halo or glare under strong light?
A: The lens uses a special optical coating technology, which effectively reduces the reflected light on the lens surface and reduces the probability of halo and glare. Even in strong light environments, such as direct sunlight or searchlights, it can maintain a relatively clear imaging effect to ensure the recognizability of the target. However, in rare special cases, a slight halo phenomenon may still occur, which can be improved by adjusting the lens angle or using auxiliary measures such as a lens hood.
Q: How to perform daily maintenance and care on the lens to ensure its performance?
A: During daily maintenance, you should pay attention to keeping the lens surface clean, gently wipe the lens surface with a soft dry cloth, avoid using rough materials or wiping hard to prevent scratching the lens; regularly check the connection between the lens and the mounting platform to ensure that it is firmly installed to prevent the optical axis from shifting due to looseness; when not in use for a long time, the lens should be stored in a dry, cool, dust-free environment and avoid contact with corrosive substances; if you find abnormal conditions in the lens during use, such as blurred images, zoom jams, etc., you should contact the manufacturer or professional maintenance personnel for inspection in time, and do not disassemble the lens by yourself.
Q: Does this lens support integration with other brands of surveillance equipment?
A: Yes. This lens uses standardized electrical interfaces and communication protocols. As long as the interfaces and parameters of the surveillance equipment are compatible, it can be integrated with other brands of equipment; however, in actual applications, in order to ensure the best compatibility and stability of the system, it is recommended to consult the lens manufacturer or equipment supplier for detailed compatibility information before integration, and configure and debug according to the corresponding installation guide and operation manual.
Features
Detection, Recognition & Identification (DRI) Range
DRI ranges enable one to easily estimate the maximum range that an object can be either detected, recognized or identified. It is important to note that these estimates are based solely on geometrical parameters – the target size, distance, lens focal length and camera detector pixel size. Signal level, detector sensitivity, atmospheric conditions and other factors are not considered!
Constant F4 aperture: The full-focal-length constant F4 aperture design keeps the aperture unchanged during the zoom process, ensuring the stability of the amount of light entering, which is conducive to obtaining uniform exposure at different focal lengths, while enhancing the flexibility and consistency of shooting.
Low distortion: Positive distortion is ≯5% at short focal length and negative distortion is ≯1% at long focal length. The distortion control is excellent, which effectively reduces the deformation and distortion of the image, making the imaging more realistic and reliable, which is of great significance for high-precision measurement and monitoring applications.
Athermal design: By using special materials and mechanical structures, the lens has excellent athermal characteristics, which can maintain stable optical performance in a wide temperature range of -32℃ to +80℃, without frequent focusing, ensuring clear and stable images under extreme temperature conditions

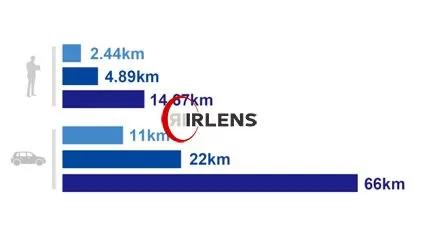

Detection: An object is present – Car66km&Person14.67km.
Recognition: discern the type of object – Car22km&Person4.89km.
Identification: discern specific objects –Car11km&Person2.44km.

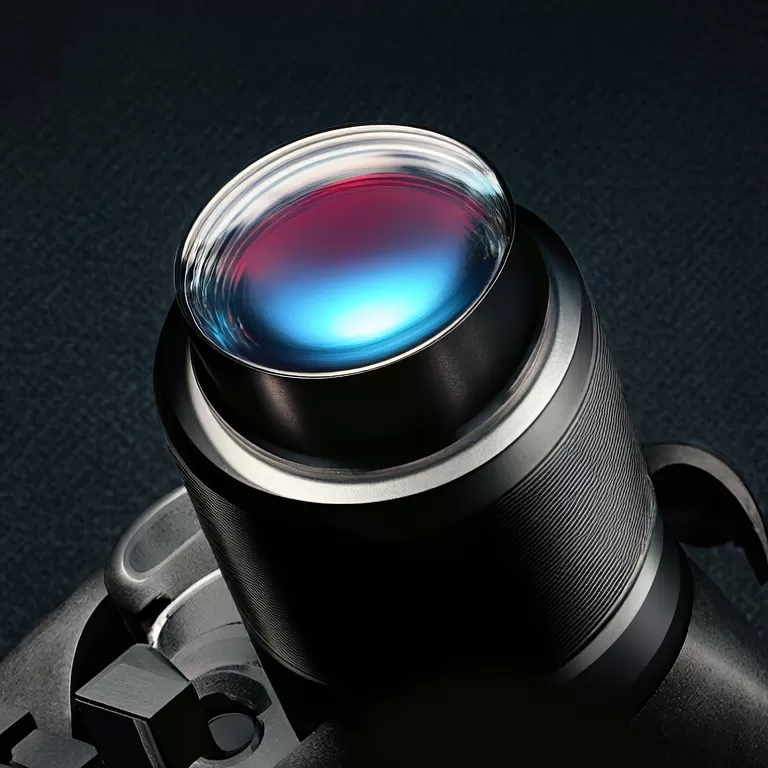

High Performance Mid-Wave Focal Plane

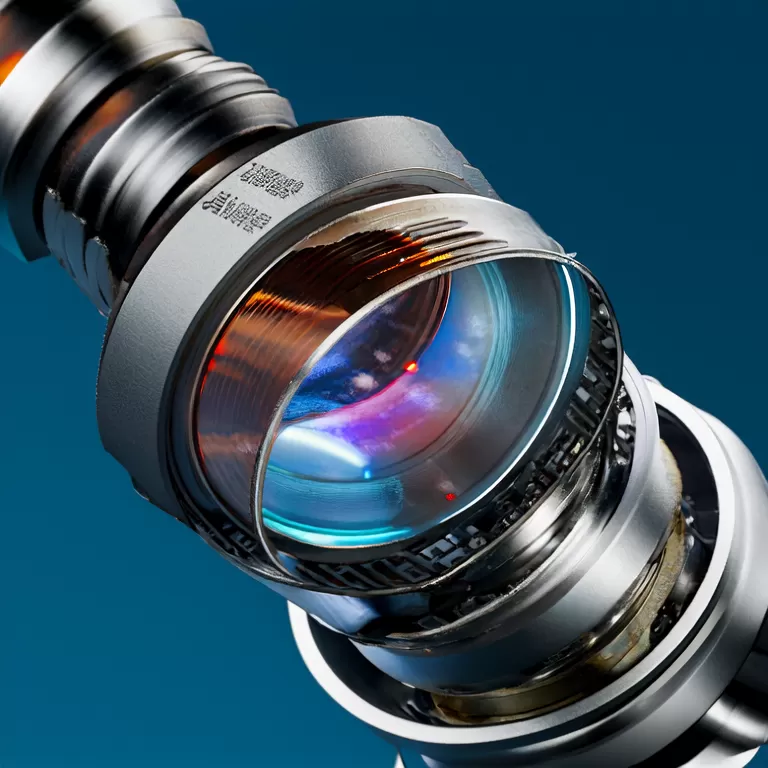

Passive Athermalized Lens Assembly
Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.
