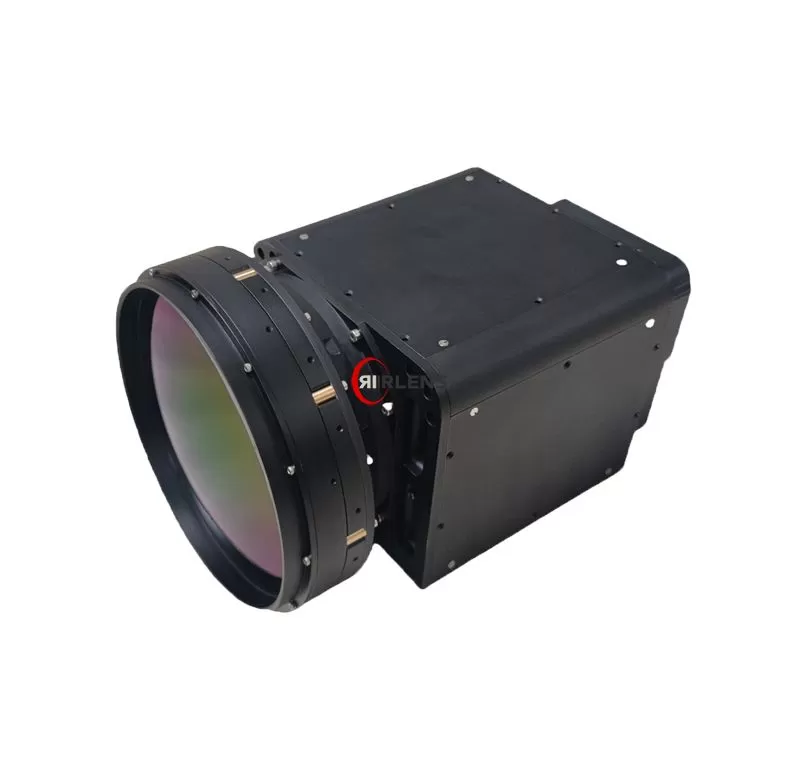

MWIR detector and 640x512 resolution for crispy image. In addition, Continuous Zoom IR Lens 36.4~1100mm can distinguish the human, vehicle and ships at long range.
Details Parameters
Advanced technologies for the highest performance mid-wave focal planes:
1. High-durability and hard-carbon 3.7-4.8 µm MWIR wavelength AR exposed mirror coating
2. Passive athermalization with the highest imaging performance from -40 to +60°C
3. Optimized for 640x512 cooled MWIR cameras with 15 μm pixel pitch
4. Motorized focus and zoom mechanism with crisp image over the full range
| Specifications | ||
| OPTICAL | ||
| Focal Length / F# | 36.4~1100mm F/5.5 | Compatible with detectors having 36.4mm ≥ EFL≤1100mm |
| Detector (FPA) type | 640×512-15μm | |
| Working Spectral Band(SR) | 3.7um-4.8um | |
| FOV | 15°×12°～0.5°×0.4° | |
| Exposed Mirror Coating | High efficiency AR coating | DLC and HD are available upon request |
| Imaging Range | 50m to infinity | |
| MECHANICAL | ||
| Zoom Mechanism | Motorized | |
| Total Weight | 8.9kg | lens and control pannel |
| Dimensions | Ø216mm×319.88mm | Length is available upon request |
| Mount | Customized to Specification | |
| ENVIRONMENTAL | ||
| Operating Temperature | -40ºC to +60ºC | |
| Storage Temperature | -40ºC to +60ºC | Keep two houres when test |
| Shock and Vibrations | Per applicable standard | |
| Front Lens Sealing | IP67 | |
As a professional manufacturer in the field of infrared optics, we have created outstanding market advantages for the 36.4 - 1100mm F5.5 Cooled Continuous Zoom IR Lens product series, especially optimized for the core concerns of buyers:
Ultra-long focal length and high sensitivity integration: This lens has an ultra-long zoom range of 36.4 - 1100mm with F5.5 constant aperture, combined with a cooled infrared detector, which can maintain excellent thermal sensitivity and image resolution during long-distance detection, easily capture the thermal characteristics of small targets at a long distance, and meet the stringent requirements of military monitoring, border patrols, etc. for long-distance high-precision detection.
Excellent optical and thermal imaging performance: Using advanced optical design and high-quality infrared optical materials, effectively correcting aberrations, ensuring the output of clear, sharp and high-contrast thermal imaging images within the full focal length, helping users accurately identify and analyze targets in complex scenes, and improving monitoring efficiency and reliability.
Rugged and reliable industrial-grade design: The lens adopts a rugged metal shell and precision machining technology, has excellent environmental adaptability, can withstand bad weather and extreme temperature conditions, ensure long-term stable operation in harsh environments such as the field and at sea, reduce maintenance costs and frequency, and ensure the continuity of monitoring work.
Flexible customization, fast delivery: We have a professional R&D team and a complete production system, and can provide fast customization services according to the specific needs of customers. Whether it is integrated into an existing system or developing a new solution, it can accurately match the customer's application scenario, achieve efficient delivery, and help customers respond quickly to market changes.
Strict quality control and perfect after-sales: As the source factory, we strictly control product quality. From raw material screening to finished product testing, each process follows a high-standard quality management system to ensure stable and reliable product performance. At the same time, we provide perfect after-sales service to escort customers' long-term use and relieve their worries.
Q: Is the adaptation of the refrigerated detector of this lens complicated? Does it require additional refrigeration equipment?
A: The lens itself is designed for cooled infrared detectors and has good compatibility with cooled detectors. You only need to correctly install the lens on the device equipped with a cooled detector and perform simple configuration according to the operating instructions of the device to complete the adaptation without the need for additional cooling equipment. Cooled detectors usually have their own cooling system, and the connection and coordination between the lens and the detector are standardized, which is convenient for users to quickly integrate into the monitoring system.
Q: Will the performance of the lens be affected in a strong electromagnetic interference environment?
A: Effective anti-interference measures have been taken during the design and manufacturing process of the lens, which can resist a certain degree of strong electromagnetic interference. However, in an extremely strong electromagnetic interference environment, it may still have a slight impact on image quality or operational stability. To ensure the best performance of the lens, during installation and use, try to avoid placing the lens near strong electromagnetic interference sources, such as large motors, high-voltage wires, etc. If it must be used in a strong electromagnetic interference environment, it is recommended to take corresponding electromagnetic shielding measures to reduce the impact of interference on the lens.
Q: What is the approximate service life of the lens? Is warranty service provided?
A: Under normal use conditions, the service life of the lens can reach more than tens of thousands of hours. The specific service life will vary depending on the environment, frequency and maintenance of use. We provide a [X] year warranty service for the lens. During the warranty period, if the failure or damage is caused by product quality problems, we will repair or replace the relevant parts for the user free of charge. At the same time, we also provide long-term technical support and after-sales service to help users solve problems encountered during use and ensure the long-term stable operation of the lens. For detailed warranty policy and service terms, please contact our customer service staff.
Q: Can this lens be customized to meet the application requirements of our special project?
A: Yes, we can customize the lens according to the special project requirements of customers. Including but not limited to adjusting the focal range, optimizing optical performance, changing the mechanical interface, adding special functions, etc. Our professional technical team will communicate closely with customers, deeply understand the project requirements, and provide customized solutions to ensure that the lens can meet the personalized application requirements of customers. If customized development is required, please contact our sales or technical department in advance and explain your requirements and project background in detail.
Features

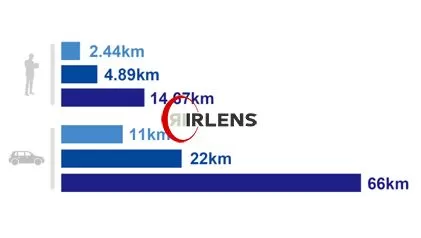

Detection, Recognition & Identification (DRI) Range
DRI ranges enable one to easily estimate the maximum range that an object can be either detected, recognized or identified. It is important to note that these estimates are based solely on geometrical parameters – the target size, distance, lens focal length and camera detector pixel size. Signal level, detector sensitivity, atmospheric conditions and other factors are not considered!
Detection: An object is present – Car66km&Person14.67km.
Recognition: discern the type of object – Car22km&Person4.89km.
Identification: discern specific objects –Car11km&Person2.44km.
High Performance Mid-Wave Focal Plane
Passive Athermalized Lens Assembly
Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.
