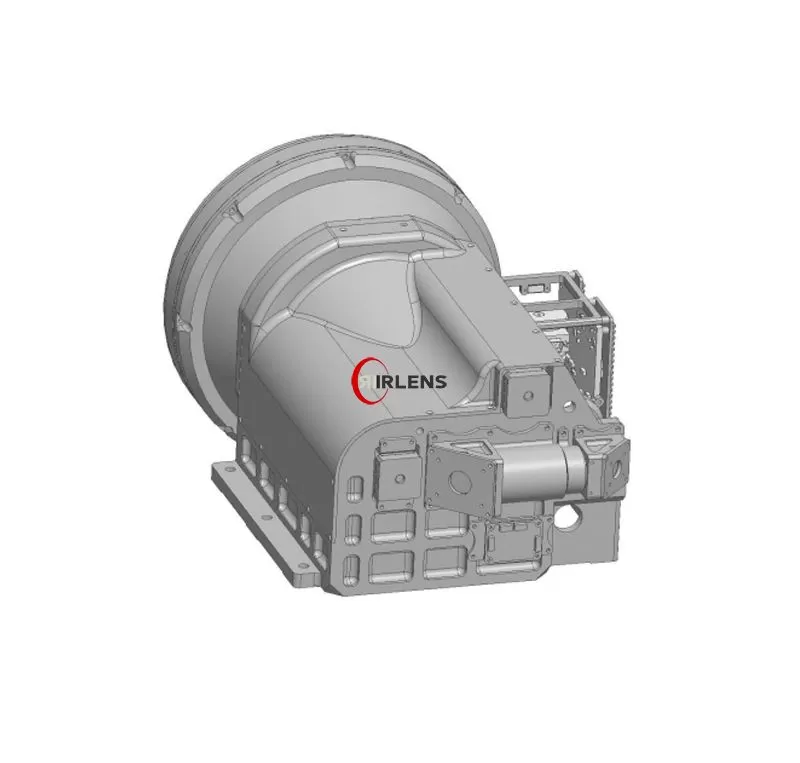

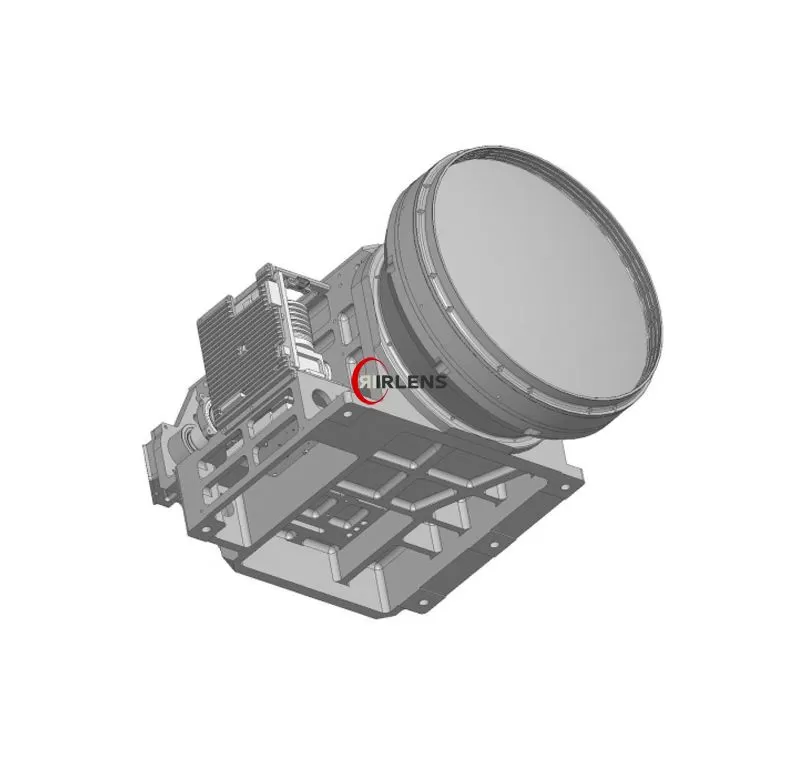

40mm～1000mm F4 Cooled Continuous Zoom

An infrared lens is a type of optical lens that is designed to focus infrared light. It is made of materials and has coatings that allow it to efficiently transmit infrared wavelengths, which are longer than those of visible light. Infrared lenses are used in various applications such as infrared cameras, thermal imaging systems, and night vision devices, enabling the capture of images in low-light or no-light conditions based on the infrared radiation emitted or reflected by objects.

Infrared lenses are widely used in many fields. In the field of security and surveillance, they are used in infrared cameras for night monitoring to detect intruders or monitor activities in the dark. In the military, they are used for night vision goggles and infrared detection systems to enhance situational awareness. In industry, they are applied in thermal imaging cameras for equipment inspection, detecting overheating components or heat leaks in pipelines. In addition, infrared lenses are also used in astronomy for observing celestial bodies that emit infrared radiation, and in some scientific research fields such as environmental monitoring and remote sensing.

Common materials for infrared lenses include germanium (Ge), zinc selenide (ZnSe), and silicon (Si). Germanium is a popular choice due to its excellent infrared transmission properties in the mid-wave and long-wave infrared regions. It has a high refractive index, which allows for more compact lens designs. Zinc selenide is another commonly used material that offers good infrared transparency and is suitable for a wide range of infrared wavelengths. Silicon is also used, especially in the near-infrared range, and has the advantage of being relatively inexpensive and compatible with semiconductor manufacturing processes.

Infrared lenses are designed with materials and optical geometries that are optimized for specific infrared wavelength ranges. For example, lenses for near-infrared (NIR) applications may have different refractive indices and curvatures compared to those for mid-wave infrared (MWIR) or long-wave infrared (LWIR).

The performance of an infrared lens is evaluated by several parameters. Modulation Transfer Function (MTF) is an important indicate that measures the lens's ability to transfer contrast from the object to the image plane at different spatial frequencies, indicating the sharpness and clarity of the image. Another parameter is the focal length, which determines the magnification and field of view of the lens. The aperture or f-number affects the amount of light that can pass through the lens and thus the brightness of the image. In addition, factors such as chromatic aberration, distortion, and the lens's ability to maintain focus over a range of temperatures also play important roles in evaluating its performance.

During the manufacturing process of infrared lenses, strict quality control measures are essential. This includes precise grinding and polishing of the lens surfaces to achieve the required curvature and smoothness, which is crucial for accurate focusing and minimizing light scattering. High-quality coating processes are also necessary to apply anti-reflective coatings that enhance the infrared transmission and reduce unwanted reflections. Meticulous inspection and testing at each stage of production, such as using interferometers to measure surface accuracy and another testing equipment to evaluate optical performance, help to identify and correct any defects or deviations from the required specifications. Additionally, maintaining a clean and controlled manufacturing environment is important to prevent contamination that could affect th
