The Cooled Dual-FOV infrared thermal imager is a mature and highly reliable product independently developed by our company that complies with ISO standards. It uses high-quality materials and advanced manufacturing technology.The dual field thermal imaging instrument has strong adaptability to harsh environments and can achieve both long-distance detection and detail recognition, greatly improving detection accuracy.
Details Parameters

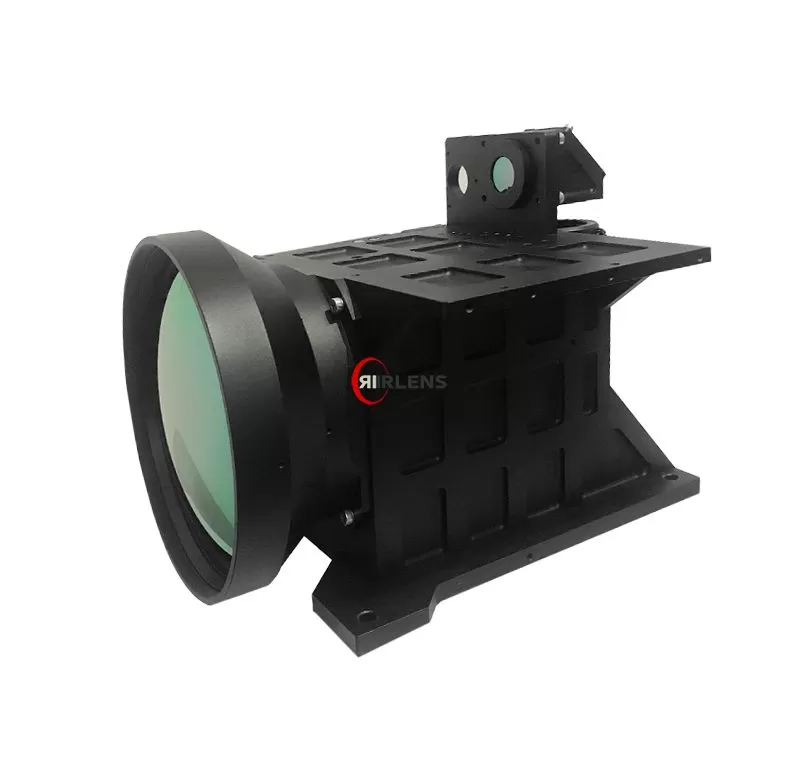

The 191mm / 338mm cooled dual FOV infrared lens is a high-end optical solution designed for advanced EO/IR thermal imaging systems requiring both long-range detection and flexible field-of-view switching capability.
This dual field-of-view (Dual FOV) design integrates two focal lengths within a single optical system, enabling seamless switching between wide-area search (191mm) and long-range identification (338mm) modes.
It is engineered for cooled infrared detectors operating in the 3–5μm MWIR or 8–12μm LWIR bands (depending on configuration), and is widely deployed in defense, border surveillance, maritime monitoring, and large-scale security systems.
This LWIR Lens for Cooled Camera is designed for system integrators and large-scale project procurement, rather than single-unit equipment buyers.
Advanced technologies for the highest performance long-wave focal planes:
1.High-durability and hard-carbon 7.6-9.7 µm LWIR wavelength DLC exposed mirror coating.
2.High precision manufacturing processes and strict quality control procedures ensure stable imaging in various practical use environments.
3.Optimized for 640x512 LWIR cameras with 24 μm pixel pitch.
4.Dual field of view design to meet various application requirements.
Unlike fixed focal length lenses, the Dual FOV system provides:
191mm for detection and area search
338mm for target recognition and identification
Seamless switching between surveillance modes
Reduces need for multiple optical modules
Improves system efficiency in dynamic environments
Enhances response speed in target tracking scenarios
Designed for integration into EO/IR payload systems
Supports advanced thermal imaging platforms
Ideal for multi-sensor surveillance architectures
Integrated 191mm / 338mm switchable focal system
Optimized for long-range detection and identification
High precision optical alignment for stable switching performance
Designed for cooled thermal detectors
Compatible with high-end EO/IR imaging platforms
Suitable for high-sensitivity infrared applications
Enhanced target recognition at extreme distances
Low distortion optical system
High-resolution imaging for critical decision support
EO/IR platform compatible mechanical design
Support for large-scale system integration
Designed for continuous operation in harsh environments
The cooled dual FOV lens is designed for high-end surveillance and defense systems requiring adaptive imaging capability.
Enables rapid switching between search and identification modes
Reduces system complexity by replacing multiple single-FOV lenses
Enhances operational efficiency in mission-critical environments
Optimized for high-end EO/IR integration platforms
| Specifications | ||
| OPTICAL | ||
| Focal Length / F# | 191mm/338mm F2.0 | Compatible with detectors having 191mm&338mm |
| Detector (FPA) type | 640×512-24μm | |
| Working Spectral Band(SR) | 7.6um-9.7um | |
| FOV | 10.36°×8.3°/3.46°×2.77° | |
| Exposed Mirror Coating | DLC | AR and HD are available upon request |
| MECHANICAL | ||
| Zoom Mechanism | Motorized | |
| Total Weight | lens and control pannel | |
| Dimensions | 307.01mm×210mm×185mm | Length is available upon request |
| Mount | Customized to Specification | |
| ENVIRONMENTAL | ||
| Operating Temperature | -40ºC to +60ºC | |
| Storage Temperature | -40ºC to +60ºC | Keep two houres when test |
| Shock and Vibrations | Per applicable standard | |
| Front Lens Sealing | IP67 | |

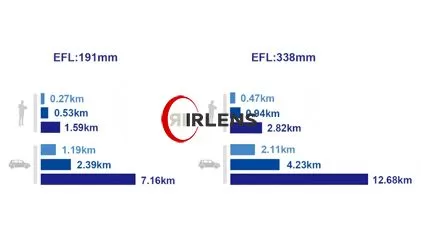

DRI ranges enable one to easily estimate the maximum range that an object can be either detected, recognized or identified. It is important to note that these estimates are based solely on geometrical parameters – the target size, distance, lens focal length and camera detector pixel size. Signal level, detector sensitivity, atmospheric conditions and other factors are not considered!
Detection: An object is present – Car7.16km/12.68km&Person1.59km/2.82km.
Recognition: discern the type of object – Car2.39km/4.23km&Person0.53km/0.94km.
Identification: discern specific objects –Car1.19km/2.11km&Person0.27km/0.47km.
This dual FOV cooled infrared lens is widely used in large-scale and mission-critical systems:
Border surveillance and national security systems
Maritime and coastal monitoring platforms
Airborne EO/IR reconnaissance systems
Long-range tracking and early warning systems
Defense and military thermal imaging platforms
Large-scale integrated surveillance networks
This product is not a standard catalog lens. It is designed for:
Project-based bulk supply
Long-term system deployment programs
Government and defense procurement projects
Multi-sensor imaging platforms
Command and control surveillance systems
Vehicle, airborne, and naval integration systems
Optical customization for system requirements
Integration support for thermal imaging platforms
Long-term supply chain cooperation
In advanced EO/IR systems, a single focal length is often insufficient.
The dual FOV system solves this by:
Using wide FOV (191mm) for rapid target acquisition
Switching to narrow FOV (338mm) for precise identification
Reducing operational delay in dynamic tracking scenarios
Improving mission success rate in complex environments
This makes it a critical optical component in modern surveillance architectures.
IRLENS supports system-level customization for dual FOV infrared lenses:
Optical design adaptation for platform requirements
Detector compatibility optimization (MWIR / LWIR cooled systems)
Mechanical and interface customization for EO/IR systems
Environmental ruggedization for defense applications
Batch production for large-scale deployment programs
Explore other infrared optical solutions:
19mm LWIR Lens – Wide-angle thermal imaging
50mm LWIR Lens – Standard surveillance applications
100mm Motorized LWIR Lens – Medium-range EO/IR systems
160mm Motorized LWIR Lens – Long-range identification systems
Beijing IRLENS specializes in the design and manufacturing of advanced infrared optical systems for MWIR and LWIR thermal imaging applications. We provide system-level optical solutions for global defense contractors, EO/IR system integrators, and large-scale surveillance platform developers.
The 191mm / 338mm cooled dual FOV infrared lens is a system-level EO/IR optical solution designed for long-range detection and identification missions. With dual focal length capability, cooled detector compatibility, and integration-ready architecture, it is widely used in defense, maritime, and large-scale surveillance systems requiring high-performance thermal imaging.
