What is Thermal Imaging? How a Thermal Image is Captured

Thermal imaging has become an essential technology across numerous industries, enabling the detection of heat patterns and temperature differences invisible to the human eye. From building inspections to electrical diagnostics, and from security surveillance to medical screening, thermal imaging plays a vital role in identifying problems and improving safety. But how exactly does thermal imaging work, and how is a thermal image captured? This article provides a clear and practical introduction to this fascinating technology.

What is Thermal Imaging?

Thermal imaging, also known as infrared thermography, is a technique that uses infrared radiation to create images based on heat. Unlike visible light, which reveals color and shape, thermal imaging shows temperature differences, highlighting areas of heat emission or loss.

All objects with a temperature above absolute zero (-273.15°C) emit infrared radiation. The amount of radiation emitted increases with the object's temperature. Thermal imaging devices detect this infrared energy and convert it into an image that visually represents temperature variations across the observed scene.

How Does Thermal Imaging Work?

At the heart of thermal imaging systems is a thermal camera, also referred to as an infrared camera. These devices are designed to detect and capture the infrared radiation emitted by objects, converting it into a visual image called a thermogram.

Here’s a simplified breakdown of how the process works:

1. Detection of Infrared Radiation
          Every object emits infrared radiation, even those that feel "cold" to the touch. Thermal cameras are equipped with highly sensitive sensors capable of detecting this radiation. Unlike standard cameras, which work with visible light (wavelengths of approximately 0.4 to 0.7 microns), thermal cameras operate in the infrared spectrum, typically from 2 microns to 15 microns.

2. Conversion to Electrical Signals
          Once the camera's sensor detects the infrared radiation, the energy is converted into electrical signals. The sensor used for this process is often made from materials like vanadium oxide or amorphous silicon, which are highly responsive to temperature variations.

3. Processing and Image Formation
          The electrical signals generated by the sensor are processed by the camera's internal system. This processing involves translating the varying levels of infrared radiation into a two-dimensional image where different colors or shades represent different temperatures.
          For example:These images are called thermograms, and they provide a visual map of temperature distribution across the target surface or environment.

• Warmer areas may appear in bright colors like red, yellow, or white.

• Cooler areas may appear in darker shades like blue or purple.




Key Components of a Thermal Camera

A thermal imaging system relies on several critical components to function effectively:

1. Infrared Optics

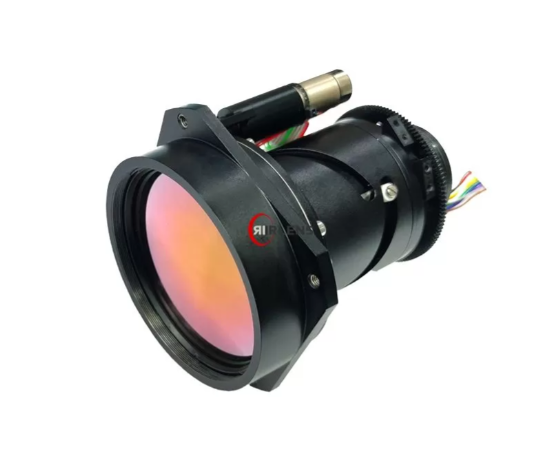

          Thermal cameras use specialized infrared lenses to focus the incoming infrared radiation onto the detector. These lenses are typically made from materials like germanium or chalcogenide glass, which are transparent to infrared wavelengths.

2. Infrared Detector
          The detector, sometimes called a focal plane array (FPA), captures the infrared radiation. Detectors vary in sensitivity and resolution, influencing the clarity and accuracy of the final image.

3. Signal Processing Unit
          The signal processing unit converts raw sensor data into visual images. It also handles calibration, compensation for environmental factors, and image enhancement features.

4. Display Screen
          Most thermal cameras come with built-in displays that show the thermal image in real time. Some models also allow for image storage, analysis, or live transmission to external devices.










Factors Affecting Thermal Imaging Performance

The accuracy and clarity of thermal images depend on several factors:

• Detector Resolution: Higher resolution detectors provide more detailed thermal images.

• Thermal Sensitivity (NETD): Lower NETD means better sensitivity.

• Optical Quality: High-quality lenses ensure accurate radiation capture.

• Calibration: Ensures accuracy under various environmental conditions.




Practical Applications of Thermal Imaging

Thanks to its ability to visualize heat, thermal imaging has found applications across a wide range of industries:

1. Building Inspections

2. Electrical System Diagnostics

3. Mechanical Equipment Monitoring

4. Medical and Health Screening

5. Security and Surveillance

6. Scientific Research




Advantages of Thermal Imaging

• Non-Contact Measurement

• Works in Darkness

• Real-Time Imaging

• Wide Detection Area

• Early Problem Detection




Limitations to Consider

• Cannot “see through” walls or solid objects

• Accuracy can be affected by reflective surfaces

• Requires proper training to interpret images




Conclusion

Thermal imaging transforms invisible heat into visible insights, providing a practical, reliable method for detecting temperature differences and uncovering hidden problems. As technology evolves, thermal cameras continue to improve in sensitivity, resolution, and ease of use, expanding their value across industries.

Whether for building diagnostics, equipment maintenance, security, or health screening, thermal imaging offers a fast, safe, and efficient way to enhance operations and ensure safety. For those seeking reliable, high-performance infrared optical solutions essential for thermal imaging systems, Beijing IRLENS Optoelectronic Co., Ltd provides advanced, precision-engineered infrared components to support your thermal imaging needs.
