The uncooled Dual-FOV infrared thermal imager is a mature and highly reliable product independently developed by our company that complies with ISO standards. It uses high-quality materials and advanced manufacturing technology.The dual field thermal imaging instrument has strong adaptability to harsh environments and can achieve both long-distance detection and detail recognition, greatly improving detection accuracy.
Details Parameters
Advanced technologies for the highest performance long-wave focal planes:
1.High-durability and hard-carbon 8-14 µm LWIR wavelength AR exposed mirror coating.
2.High precision manufacturing processes and strict quality control procedures ensure stable imaging in various practical use environments.
3.Optimized for 1280x1024 LWIR cameras with 12 μm pixel pitch.
4.Dual field of view design to meet various application requirements.
| Specifications | ||
| OPTICAL | ||
| Focal Length / F# | 20mm/60mm F1.0/1.2 | Compatible with detectors having 20mm&60mm |
| Detector (FPA) type | 640×512-12μm | |
| Working Spectral Band(SR) | 8um-12um | |
| FOV | 21.74°×17.46°/7.32°×5.86° | |
| Exposed Mirror Coating | High efficiency AR coating | DLC and HD are available upon request |
| MECHANICAL | ||
| Zoom Mechanism | Motorized | |
| Total Weight | ≤2.5kg | lens and control pannel |
| Dimensions | φ140mm×190.95mm | Length is available upon request |
| Mount | Customized to Specification | |
| ENVIRONMENTAL | ||
| Operating Temperature | -40ºC to +60ºC | |
| Storage Temperature | -40ºC to +60ºC | Keep two houres when test |
| Shock and Vibrations | Per applicable standard | |
| Front Lens Sealing | IP67 | |
Features

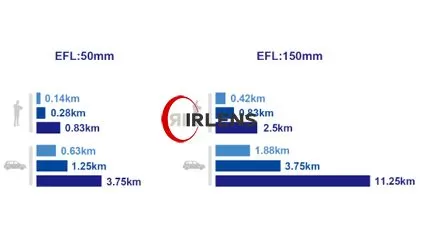

Detection, Recognition & Identification (DRI) Range
DRI ranges enable one to easily estimate the maximum range that an object can be either detected, recognized or identified. It is important to note that these estimates are based solely on geometrical parameters – the target size, distance, lens focal length and camera detector pixel size. Signal level, detector sensitivity, atmospheric conditions and other factors are not considered!
Detection: An object is present – Car3.75km/11.25km&Person0.83km/2.5km.
Recognition: discern the type of object – Car1.25km/3.75km&Person0.28km/0.83km.
Identification: discern specific objects –Car0.63km/1.88km&Person0.14km/0.42km.
F0.95/F1.15 Infrared Optics for OEM Thermal Camera Integration

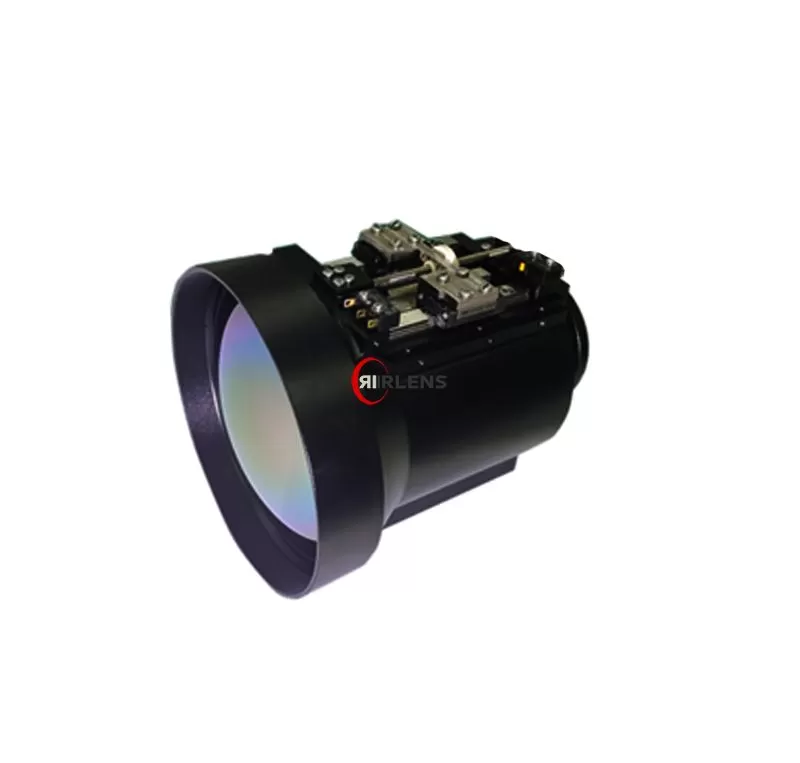

The IRLENS 50/150mm uncooled LWIR dual FOV lens provides two discrete optical viewing positions for thermal imaging systems. The 50mm position offers broader scene coverage, while the 150mm position provides a narrower field of view and a larger image of distant objects on the same detector.
Designed for integration into uncooled thermal cameras, this lens gives equipment manufacturers and system integrators a defined focal length pair for scene observation and detailed inspection. Discuss your detector, mounting requirements and production quantities with IRLENS to evaluate the right configuration for your project.
Compare other focal length combinations in our Uncooled LWIR Dual FOV Lenses range.
Request the Datasheet and Volume Pricing
| Parameter | Specification |
|---|---|
| Product type | Uncooled LWIR dual field-of-view lens |
| Focal length pair | 50mm / 150mm |
| F-number at 50mm | F0.95 |
| F-number at 150mm | F1.15 |
| Optical viewing positions | Two discrete focal lengths |
| Focal length ratio | 3:1 |
| Intended integration | Uncooled thermal imaging cameras |
Request the model-specific datasheet and mechanical drawing to confirm detector compatibility, spectral coverage, field of view, dimensions, weight and operating limits for your configuration.
On a given detector, the 50mm position covers a wider scene than the 150mm position. It helps operators retain more surrounding context when observing a site, locating an area of interest or assessing movement within the camera's coverage.
The 150mm position concentrates the view on a smaller part of the scene. For distant objects on the same detector, it produces approximately three times the linear image scale of the 50mm position. This can support closer examination of features that occupy fewer pixels in the wider view.
The two focal lengths are paired with F0.95 and F1.15 apertures respectively. Evaluate the lens transmission and image quality at both positions against your detector's sensitivity and spatial resolution requirements. The complete camera design determines the resulting thermal image performance.
The 3:1 focal length ratio describes the relationship between the two optical positions. This dual-FOV configuration provides two specified views; intermediate focal lengths are not specified as usable imaging positions.
Focal length alone does not determine compatibility. A successful 50/150mm LWIR lens integration requires the optical image, mechanical interface and control arrangement to match the camera platform.
Detector matching: provide the detector model, active dimensions, resolution and pixel pitch for image circle and image quality evaluation.
Field of view: specify the horizontal and vertical coverage required at both 50mm and 150mm.
Mechanical interface: confirm the mounting thread or flange, back focal distance, installation envelope and protective window arrangement.
Focus and switching: define control requirements, switching time and acceptable focus or optical-axis shift between positions.
Operating conditions: identify temperature, vibration, moisture and dust exposure for the intended installation.
For prototype evaluation, test both optical positions on your actual camera core. Include image quality, focus repeatability and alignment in the acceptance criteria before releasing the configuration for repeat orders.
This focal length combination can be evaluated for professional thermal systems requiring both scene context and a narrower observation view:
Perimeter surveillance cameras: observe a section of a site and examine an area of interest at a larger image scale.
Industrial facility monitoring: combine an overview of equipment or infrastructure with closer optical observation of selected areas.
Vehicle-mounted observation systems: provide two viewing modes within a thermal camera installation that meets the lens's mechanical requirements.
Detection and recognition distances should be assessed for the complete system, including the detector, target size, thermal contrast and atmospheric conditions. Use project-specific evaluation when selecting optics for a required observation distance.
IRLENS offers custom infrared lens design and manufacturing services for equipment developers whose requirements extend beyond an existing configuration.
Submit your detector datasheet and installation drawing for review of:
Optical coverage and spectral transmission requirements.
Mounting interfaces, housing dimensions and mechanical clearances.
Focus and FOV control arrangements.
Coating and environmental protection requirements.
Sample evaluation, inspection criteria and production quantities.
Customization feasibility, development scope and delivery arrangements are reviewed against the required performance and order forecast.
Established in 2014, Beijing IRLENS Optoelectronic Co., Ltd. develops and manufactures infrared lenses for OEM projects. Our company has developed more than 1,400 infrared lens designs and has an annual manufacturing capacity of 50,000 lenses across its infrared product portfolio.
Our capabilities include optical design, precision optical and mechanical processing, coating, assembly and inspection. Component measurement and lens imaging evaluation support the assessment of dimensional accuracy, transmission, focus and optical alignment.
For a recurring 50/150mm lens order, provide the initial quantity and expected annual demand. Discuss model-specific capacity, production lead time, inspection records and delivery scheduling with our team.
It is a dual field-of-view lens with specified 50mm and 150mm optical positions. A continuous zoom lens provides usable imaging across a range of intermediate focal lengths. Select the configuration that matches your camera's required viewing modes.
Compatibility requires evaluation of the detector's active area, pixel pitch, package and optical requirements. Share the exact detector model so IRLENS can review image circle coverage, focal plane positioning and the mechanical interface.
The focal length ratio is 3:1, but detection distance also depends on image quality, detector performance, target characteristics and the environment. Confirm observation performance using the complete camera system and a defined test method.
This page covers the optical lens assembly for thermal camera integration. Specify any required control hardware, cables or additional components in your inquiry so the quotation clearly defines the supply scope.
Send your evaluation quantity, planned production order and estimated annual demand. Ask our team to confirm sample arrangements, minimum order quantity, volume pricing and lead time for the agreed configuration.
Prepare your next thermal camera project with a lens selected around its optical, mechanical and procurement requirements. Include the following in your inquiry:
Company name and application.
Detector model, resolution and pixel pitch.
Required fields of view and operating conditions.
Mounting drawing and installation limits.
Sample quantity, first production order and annual demand.
Target delivery date and destination.
IRLENS can review the configuration and discuss the quotation, evaluation process and production requirements for your OEM supply program.
High Performance Mid-Wave Focal Plane
Passive Athermalized Lens Assembly
Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.
