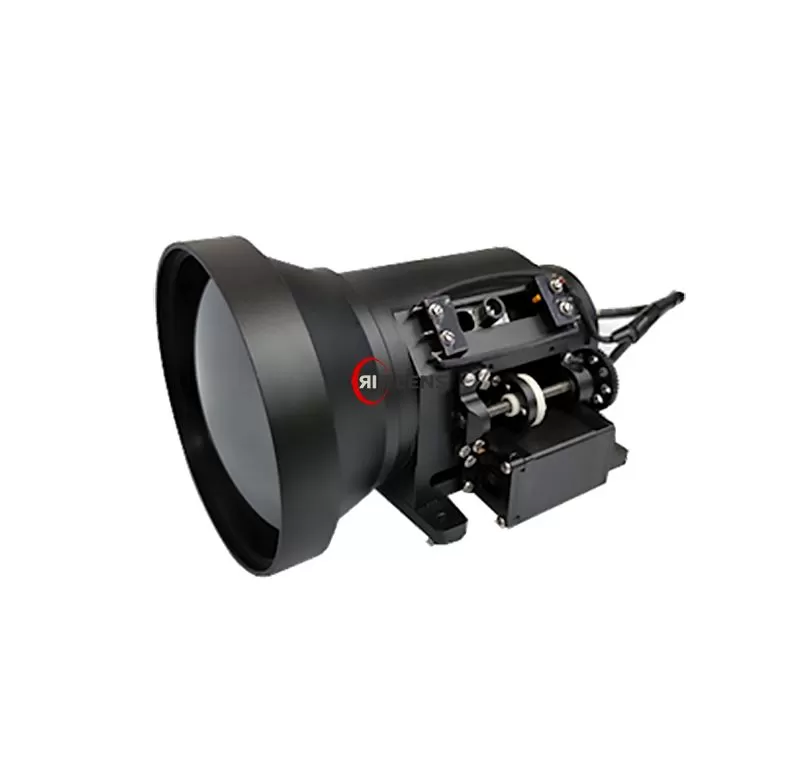

The uncooled Dual-FOV infrared thermal imager is a mature and highly reliable product independently developed by our company that complies with ISO standards. It uses high-quality materials and advanced manufacturing technology.The dual field thermal imaging instrument has strong adaptability to harsh environments and can achieve both long-distance detection and detail recognition, greatly improving detection accuracy.
Details Parameters
Advanced technologies for the highest performance long-wave focal planes:
1.High-durability and hard-carbon 8-14 µm LWIR wavelength DLC exposed mirror coating.
2.High precision manufacturing processes and strict quality control procedures ensure stable imaging in various practical use environments.
3.Optimized for 640x512 LWIR cameras with 17 μm pixel pitch.
4.Dual field of view design to meet various application requirements.
| Specifications | ||
| OPTICAL | ||
| Focal Length / F# | 60mm/180mm F0.9/1.2 | Compatible with detectors having 60mm&180mm |
| Detector (FPA) type | 640×512-17μm | |
| Working Spectral Band(SR) | 8um-14um | |
| FOV | 10.36°×8.3°/3.46°×2.77° | |
| Exposed Mirror Coating | DLC | AR and HD are available upon request |
| Imaging Range | 15m to infinity | |
| MECHANICAL | ||
| Zoom Mechanism | Motorized | |
| Total Weight | 2.2kg | lens and control pannel |
| Dimensions | 209mm×178mm×185mm | Length is available upon request |
| Mount | Customized to Specification | |
| ENVIRONMENTAL | ||
| Operating Temperature | -40ºC to +60ºC | |
| Storage Temperature | -40ºC to +60ºC | Keep two houres when test |
| Shock and Vibrations | Per applicable standard | |
| Front Lens Sealing | IP67 | |
Features
Detection, Recognition & Identification (DRI) Range

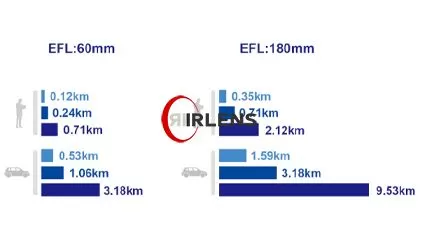

DRI ranges enable one to easily estimate the maximum range that an object can be either detected, recognized or identified. It is important to note that these estimates are based solely on geometrical parameters – the target size, distance, lens focal length and camera detector pixel size. Signal level, detector sensitivity, atmospheric conditions and other factors are not considered!
Detection: An object is present – Car3.18km/9.53km&Person0.71km/2.12km.
Recognition: discern the type of object – Car1.06km/3.18km&Person0.24km/0.71km.
Identification: discern specific objects –Car0.53km/1.59km&Person0.12km/0.35km.
The 60/180mm uncooled LWIR dual FOV lens is designed for thermal imaging systems that require both long-range detection and detailed target observation. With 60mm and 180mm focal lengths, F0.9/F1.2 optics and compatibility with 640×512 detectors with a 17μm pixel pitch, this motorized dual-FOV lens provides flexible viewing for security, industrial surveillance, firefighting and airborne thermal imaging applications.
The 60mm focal length provides a relatively wider field of view for target searching and situational awareness. The 180mm focal length delivers a narrower field of view for long-distance observation, target recognition and identification. This dual-FOV configuration allows one thermal imaging system to cover different observation tasks without replacing the lens.
Explore more focal-length combinations in our LWIR uncooled dual-FOV lens range, or contact us for a customized infrared lens solution.
Long-range dual-FOV design: Combines 60mm and 180mm focal lengths in one optical assembly.
Fast LWIR optics: F0.9/F1.2 apertures support efficient 8–14μm thermal imaging.
Uncooled detector compatibility: Optimized for 640×512 detectors with a 17μm pixel pitch.
Motorized FOV switching: Enables remote selection between wide and narrow optical positions.
Passive athermalized assembly: Designed to support stable optical performance across the specified temperature range.
DLC exposed mirror coating: AR and HD coating options are available upon request.
Outdoor-ready construction: IP67 front lens sealing and -40°C to +60°C operating temperature.
| Category | Parameter | Specification |
|---|---|---|
| Optical | Focal Length / F# | 60mm / 180mm, F0.9 / F1.2 |
| Detector Type | 640×512, 17μm pixel pitch | |
| Working Spectral Band | 8–14μm | |
| Field of View | 10.36° × 8.30° / 3.46° × 2.77° | |
| Imaging Range | 15m to infinity | |
| Exposed Mirror Coating | DLC; AR and HD available upon request | |
| Lens Assembly | Passive athermalized lens assembly | |
| Mechanical | FOV Switching | Motorized |
| Total Weight | Approximately 2.2kg, including lens and control panel | |
| Dimensions | 209mm × 178mm × 185mm | |
| Mount | Customized according to system requirements | |
| Environmental | Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +60°C | |
| Front Lens Sealing | IP67 | |
| Shock and Vibration | According to the applicable standard |
A 60/180mm dual-FOV lens is suitable for systems that must search a relatively broad area and then examine distant targets in greater detail. The two focal lengths serve different observation requirements:
60mm wide FOV: Supports initial target detection, area scanning and situational awareness.
180mm narrow FOV: Supports long-distance observation, target recognition and identification.
With motorized switching, operators can select the required field of view through the host system. This reduces the need for separate wide-angle and long-range thermal cameras and helps simplify optical integration.
The following values are geometric reference estimates for the 60mm and 180mm optical positions. Actual performance may vary according to target size, atmospheric conditions, detector sensitivity, signal level and system configuration.
| Task | Target | 60mm FOV | 180mm FOV |
|---|---|---|---|
| Detection | Vehicle | 3.18km | 9.53km |
| Detection | Person | 0.71km | 2.12km |
| Recognition | Vehicle | 1.06km | 3.18km |
| Recognition | Person | 0.24km | 0.71km |
| Identification | Vehicle | 0.53km | 1.59km |
| Identification | Person | 0.12km | 0.35km |
Long-range security and perimeter surveillance
UAV and airborne thermal imaging systems
Border and infrastructure monitoring
Industrial equipment and remote facility inspection
Firefighting and search-and-rescue systems
Long-distance observation and target tracking equipment
IRLENS supports thermal camera manufacturers, OEMs and system integrators with project-based optical and mechanical integration. The mounting interface can be customized according to the host platform, while coating options can be selected according to the application environment and optical requirements.
For an accurate product recommendation and quotation, please provide:
Thermal detector resolution and pixel pitch
Required field-of-view configuration
Available installation space and mounting interface
Motor control and host-system requirements
Operating environment and protection requirements
Sample quantity and estimated purchase volume
It is a long-wave infrared lens with two selectable focal lengths: 60mm for a wider observation field and 180mm for narrow-field, long-distance viewing. It is designed for uncooled thermal camera systems.
This model is optimized for a 640×512 detector with a 17μm pixel pitch. Detector compatibility should be confirmed before final system integration.
The two fields of view are 10.36° × 8.30° and 3.46° × 2.77°, corresponding to the 60mm and 180mm focal lengths.
Yes. The dual-FOV switching mechanism is motorized, allowing the host system to select the required focal length during operation.
Yes. The mount can be customized according to the host thermal camera, UAV payload or other integration platform. AR and HD coating options are also available upon request.
The lens has IP67 front lens sealing and supports an operating temperature range of -40°C to +60°C. Final outdoor suitability should be evaluated together with the complete camera enclosure and system design.
Looking for a 60/180mm uncooled LWIR dual FOV lens for long-range surveillance, airborne imaging or industrial thermal monitoring? Send us your detector information, mechanical requirements, application conditions and estimated quantity.
Contact IRLENS for datasheets, samples, technical evaluation and project pricing.
