Jun. 30, 2025
In recent years, infrared technology has been rapidly integrated into various industries, playing an increasingly critical role in scientific research, defense, security, medical imaging, and industrial inspection.
At the heart of these advanced technologies lie infrared optics, a specialized class of optical components designed to manipulate and transmit infrared radiation.
But what exactly are infrared optics, how do they work, and why are they essential for modern applications?
This article provides a comprehensive introduction to the world of infrared optics.
Before diving into the specifics of infrared optics, it is important to understand the nature of infrared light itself.
Infrared (IR) radiation is part of the electromagnetic spectrum, located just beyond visible red light, with wavelengths typically ranging from 0.75 microns (µm) to 15 microns (µm).
Unlike visible light, infrared radiation cannot be seen with the naked eye, but it can be detected as heat or captured using specialized sensors and optical systems.
Near-Infrared (NIR): 0.75 µm – 1.4 µm
Short-Wave Infrared (SWIR): 1.4 µm – 3 µm
Mid-Wave Infrared (MWIR): 3 µm – 5 µm
Long-Wave Infrared (LWIR): 8 µm – 12 µm
Far-Infrared (FIR): 15 µm and beyond
Each of these bands serves different purposes and requires specific materials and optical designs to efficiently transmit and manipulate the infrared light.
Infrared optics refer to lenses, windows, filters, mirrors, and other optical components that are engineered to operate effectively in the infrared spectrum.
Unlike optics designed for visible light, infrared optics are made from materials that are transparent to infrared radiation, ensuring high performance in applications such as thermal imaging, spectroscopy, and laser systems.
Standard glass materials used for visible light, such as borosilicate or soda-lime glass, are not suitable for infrared wavelengths, as they absorb most of the IR radiation.
Instead, infrared optics are manufactured using specialized materials, including:
Germanium (Ge): Excellent transmission from 2 µm to 14 µm, widely used in thermal imaging and defense applications.
Silicon (Si): Transparent in the 1.2 µm to 7 µm range, often used in IR laser systems and imaging.
Zinc Selenide (ZnSe): Ideal for CO₂ laser systems and thermal imaging, with high transmittance in the 0.6 µm to 20 µm range.
Zinc Sulfide (ZnS): Often used for windows and domes, with good transmission in the visible and IR regions.
Calcium Fluoride (CaF₂): Suitable for both UV and IR applications, with low absorption and high damage threshold.
Sapphire (Al₂O₃): Provides excellent durability and operates effectively across a broad wavelength range.
The choice of material depends on the specific wavelength range, application requirements, and environmental conditions.
The field of infrared optics encompasses a variety of components, each serving a specific function within IR systems:

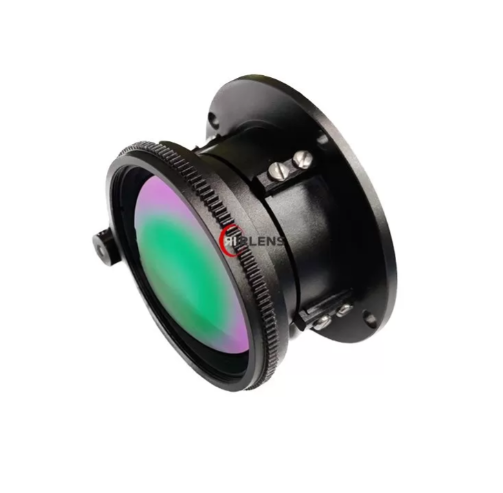

Infrared Lenses
Focus or collimate infrared radiation. Essential for thermal cameras, telescopes, and laser focusing systems. Designs may range from single-element to multi-element assemblies optimized for high resolution and minimal aberrations.
Infrared Windows
Serve as protective barriers while allowing IR radiation to pass through. Commonly made from germanium, zinc selenide, and sapphire.
Infrared Filters
Selectively transmit specific wavelengths while blocking others. Used in spectroscopy, gas detection, and imaging systems.
Infrared Mirrors
Reflect IR radiation with high efficiency. Often coated with reflective materials tailored to specific IR bands.
Infrared Beamsplitters
Split incoming IR beams into multiple paths, enabling complex measurement setups, interferometers, and laser-based systems.
The unique ability to detect heat and observe objects in complete darkness makes infrared optics indispensable across various sectors:
Thermal Imaging
Used in security surveillance, firefighting, building inspections, and automotive driver assistance systems.
Military and Defense
Fundamental in night vision devices, target acquisition, missile guidance, and reconnaissance equipment.
Industrial Inspection
Enables non-contact temperature measurement, quality control, and fault detection in manufacturing.
Medical Diagnostics
Assists in detecting vascular disorders, inflammation, and certain cancers. Also used in fever screening during global health crises.
Scientific Research
Infrared spectroscopy uses IR optics to identify chemical compounds based on their absorption characteristics. Widely applied in environmental monitoring, material science, and pharmaceutical development.
While infrared optics offer numerous advantages, designing and manufacturing them presents unique challenges:
Material Limitations: Many IR-transparent materials are brittle, expensive, or sensitive to thermal shock.
Anti-Reflection Coatings: Precision coatings are required to minimize reflection losses and maximize transmission at specific wavelengths.
Thermal Expansion: Temperature changes can affect optical performance, requiring careful material selection and system design.
Cost: High-purity materials and precision manufacturing processes often result in higher costs compared to visible-light optics.
Despite these challenges, continuous advancements in materials science and manufacturing technologies are driving down costs and improving the accessibility of high-performance infrared optical components.
Infrared optics are the backbone of countless technologies that rely on the manipulation and detection of infrared radiation.
From thermal imaging and industrial inspection to scientific research and defense, these specialized optical components play an irreplaceable role in modern society.
As industries continue to embrace infrared technology, the demand for reliable, high-quality IR optics will only grow.
With expertise in optical design, precision manufacturing, and a deep understanding of infrared applications, Beijing IRLENS Optoelectronic Co., Ltd is committed to providing cutting-edge infrared optical solutions for customers worldwide.
